Description

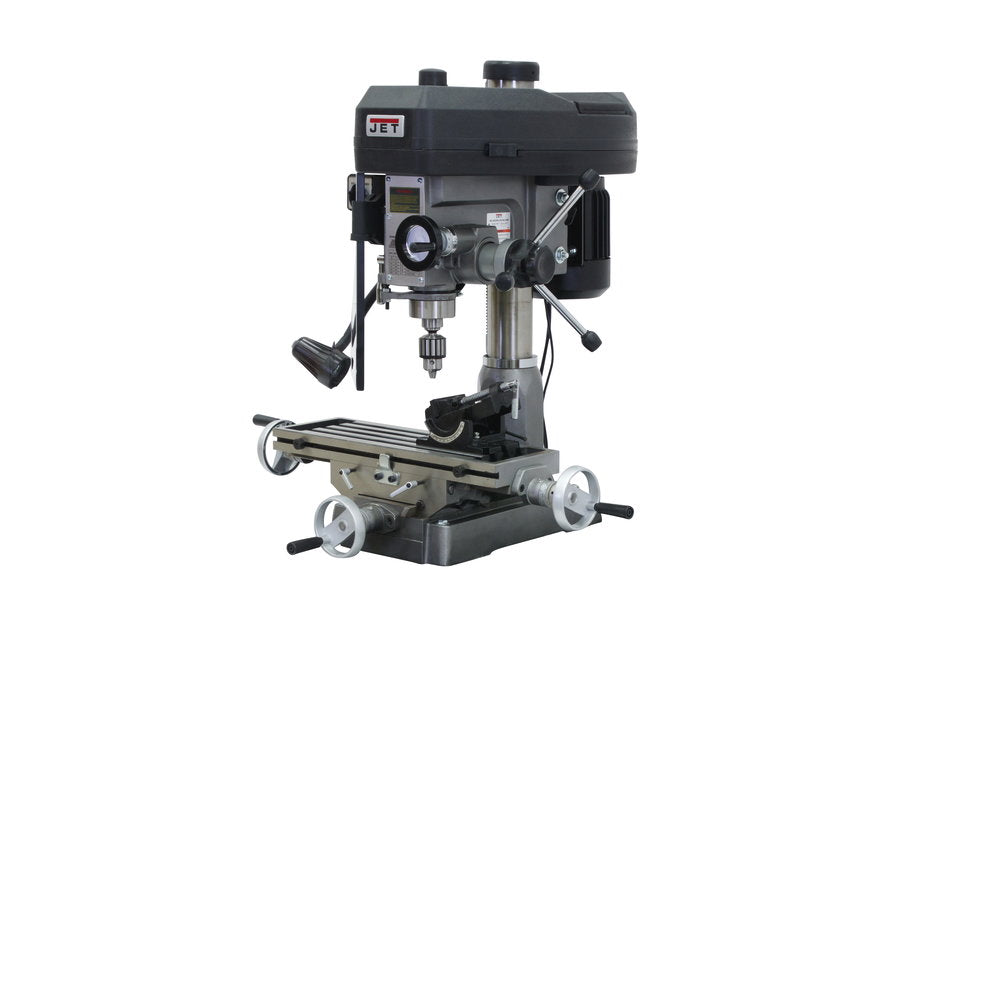

Jet 350125 Description
Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.
Jet 350125 Features
- For added safety, the JMD-15 follows strict guidelines and electrical requirements to be certified by CSA Group
- One-piece cast iron column for added support
- Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
- Base taper allows for easier clean up
- Drill Press angle vise
- UL Listed motor
- Extra large worktable
- New positive quick-stop knob and easy to read internal depth gauge (external on JMD-15)
- 360° head swivel
- Work lamp
Jet 350125 Specifications
| T-Slot Centers (In.) | 1-13/16 |
| Range of Spindle Speeds (RPM) | 110 - 2,580 |
| End Mill Capacity (In.) | 1/2 |
| Digital Readout | Newall DP700 |
| Spindle Travel (In.) | 3-1/2 |
| Spindle Taper (In. x TPI) | R-8 |
| Column Diameter (In.) | 3-5/8 |
| Table Size (L x W) (In.) | 7-1/2 X 23 |
| Table Longitudinal Travel (In.) | 14 |
| Drilling Capacity (In.) | 1 |
| Overall Dimensions (L x W x H) (In.) | 38 x 37-1/2 x 42 |
| Face Mill Capacity (In.) | 2-1/2 |
| Base Dimensions (In.) | 12/1/2 x 19-3/4 |
| T-Slots Number and Size (In.) | 4, 9/16 |
| Max Distance Spindle to Table (In.) | 15 |
| Weight (Lbs.) | 440 |
| Swing (In.) | 14-1/2 |
| Work Table Weight Capacity (Lbs.) | 350 |
| Number of Spindle Speeds | 12 |
