Description

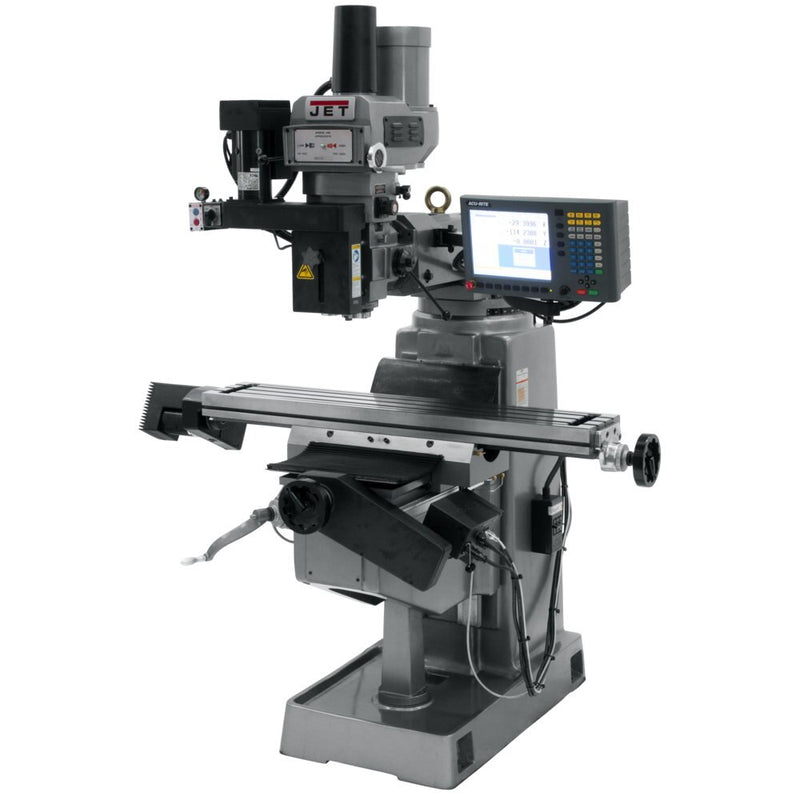

Jet 690576 Description
JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty
Jet 690576 Features
- Certified Meehanite® catings
- Class 7 bearings support the spindle for maximum ridgity in heavy cutting applications
- Precision bored and honed milling head
- Spindle head is internally cooled extending bearing, belt and motor life
- Quick spindle feed nut easily adjusts to different depths
- One-piece quill pinion and shaft
- Three-stage power downfeed with automatic stop
- Heavy-duty spindle brake
- Precision hardened and ground ways and table
Jet 690576 Specifications
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Travel of Knee (In.) | 15-3/4 |
| Head Movement (Deg.) | 90° R & L, 45° F & B |
| Motor (HP) | 3HP, 230V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 67 x 64 x 86 |
| Spindle Travel (In.) | 5 |
| Style (Type) | CNC |
| Spindle Taper (In. x TPI) | R-8 |
| Work Table Weight Capacity (Lbs.) | 720 |
| CNC Package | ACU-RITE MILLPWR® G2 |
| Table Longitudinal Travel (In.) | 36 |
| Table Size (L x W) (In.) | 9 x 49 |
| Weight (Lbs.) | 2,420 |
| T-Slots Number and Size (In.) | 3 and 5/8 |
| Table Cross Travel (In.) | 12-5/8 |
| Number of Spindle Speeds | Variable |
| T-Slot Centers (In.) | 2-1/2 |
| Range of Spindle Speeds (RPM) | 60 - 4,500 |
| Travel of Ram (In.) | 15-1/4 |
| Distance Spindle to Column (Max.) (In.) | 18-1/8 |
| Distance Spindle to Column (Min.) (In.) | 4-3/4 |
| Quill Diameter (In.) | 3-3/8 |
| Number of Axis | 3 |
| Collet Capacity | 1/8 - 7/8 |
| Max Distance Spindle to Table (In.) | 20-3/4 |
| Column Width (In.) | 18 |
| Saddle Width (In.) | 11-1/2 |
| Inverter Type | Delta, B |
| Table Longitudinal Travel With Powerfeed (In.) | 30-3/4 |
