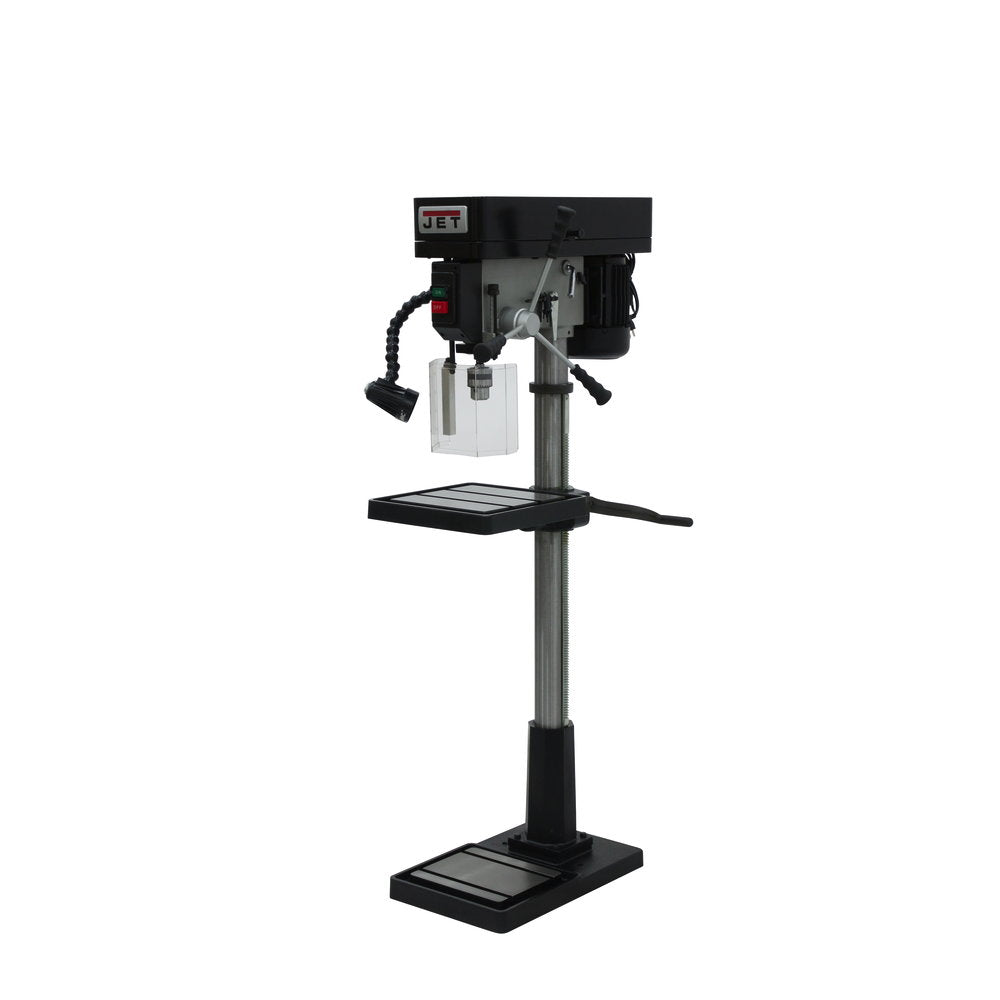

Jet 354300 Description
Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize tables and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.
Jet 354300 Features
- For added Safety, the IDP-17, 17" Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
- Spindle is supported by high quality ball bearings
- Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
- Large Hand Grips designed with the users comfort in mind
- Rotating, 45° tilting, crank-operated worktable with quick release clamp
- A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
- Adjustable tension spindle return spring
- Drill chuck and key attach to the side of the drill press always within reach of the operator
- On/off switch located on front of the drill press head
- Heavy Duty construction
Jet 354300 Specifications
| Table Size (L x W) (In.) | 14 x 14 |
| Spindle Distance to Table (Max.) (In.) | 30-1/2 |
| Base Dimensions (In.) | 21-3/4 x 13-3/4 |
| Drilling Capacity Mild Steel (In.) | 5/8 |
| Spindle Travel (In.) | 3-5/16 |
| Base Work Table (In.) | 16-15/16 x 10-13/16 |
| Weight (Lbs.) | 276 |
| Distance Column to Spindle (In.) | 8-3/8 |
| Drills to Center of Circle (in) | 17 |
| Range of Spindle Speeds (RPM) | 350 - 2,800 |
| Spindle Distance to Base (In.) | 50 |
| T-Slot Centers (In.) | 9/16 |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Base Slots Number & Size (In.) | 2 and 1/2 |
| Drilling Capacity Cast Iron (In.) | 3/4 |
| Number of Spindle Speeds | 12 |
| Spindle Taper (In. x TPI) | MT-2 |
| Style (Type) | Belt Drive |
| T-Slots Number and Size (In.) | 2 and 1/2 |
| Quill Diameter (In.) | 2-1/16 |
| Chuck Size (In.) | 5/8 |
