Jet 690150 Description

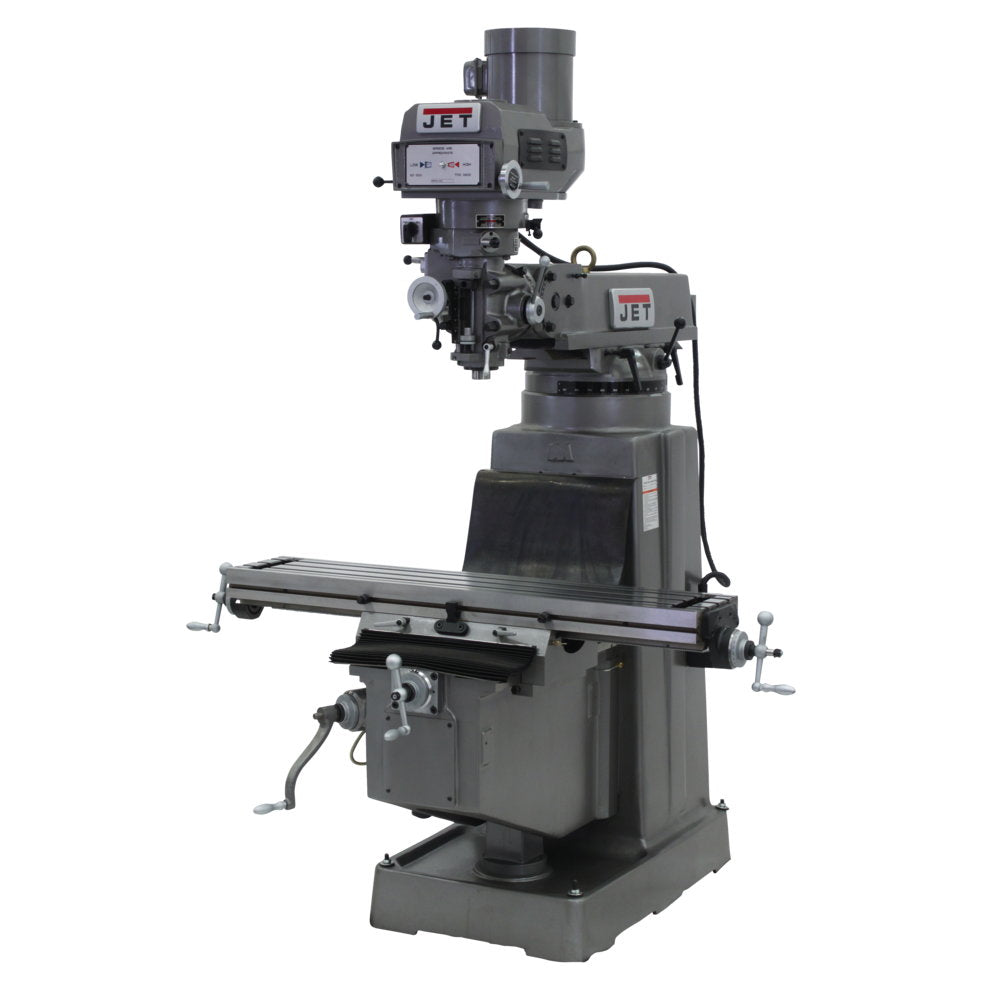

The JET JTM-1050 features Meehanite® castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty
Jet 690150 Features
- Meehanite casting
- Hardened and ground table
- Chrome lead screws on X and Y axis
- Turcite B on X and Y axis
- Satin chrome finish on dials
- Precision bored and honed milling head
- Large diameter quill is chromed
- High precision Class 7 spindle bearing
- Spindle head is internally cooled
- No fuse breaker power connection
Jet 690150 Specifications
| Spindle Travel (In.) | 5 |
| Table Cross Travel (In.) | 15-1/4 |
| T-Slot Centers (In.) | 2-1/2 |
| Distance Spindle to Column (Min.) (In.) | 5-1/2 |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Work Table Weight Capacity (Lbs.) | 720 |
| Quill Diameter (In.) | 3-3/8 |
| Collet Capacity | 1/8 - 7/8 |
| Overall Dimensions (L x W x H) (In.) | 96 x 78 x 88 |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds (RPM) | 70 - 3,800 |
| Head Movement (Deg.) | 90° R & L, 45° F & B |
| Weight (Lbs.) | 2,900 |
| Motor (HP) | 3 HP, 230/460V, 3Ph |
| Style (Type) | Variable Speed R8 |
| Table Size (L x W) (In.) | 10 x 50 |
| Distance Spindle to Column (Max.) (In.) | 26 |
| T-Slots Number and Size (In.) | 3 and 5/8 |
| Powerfeed | X and Y-Axis |
