Description

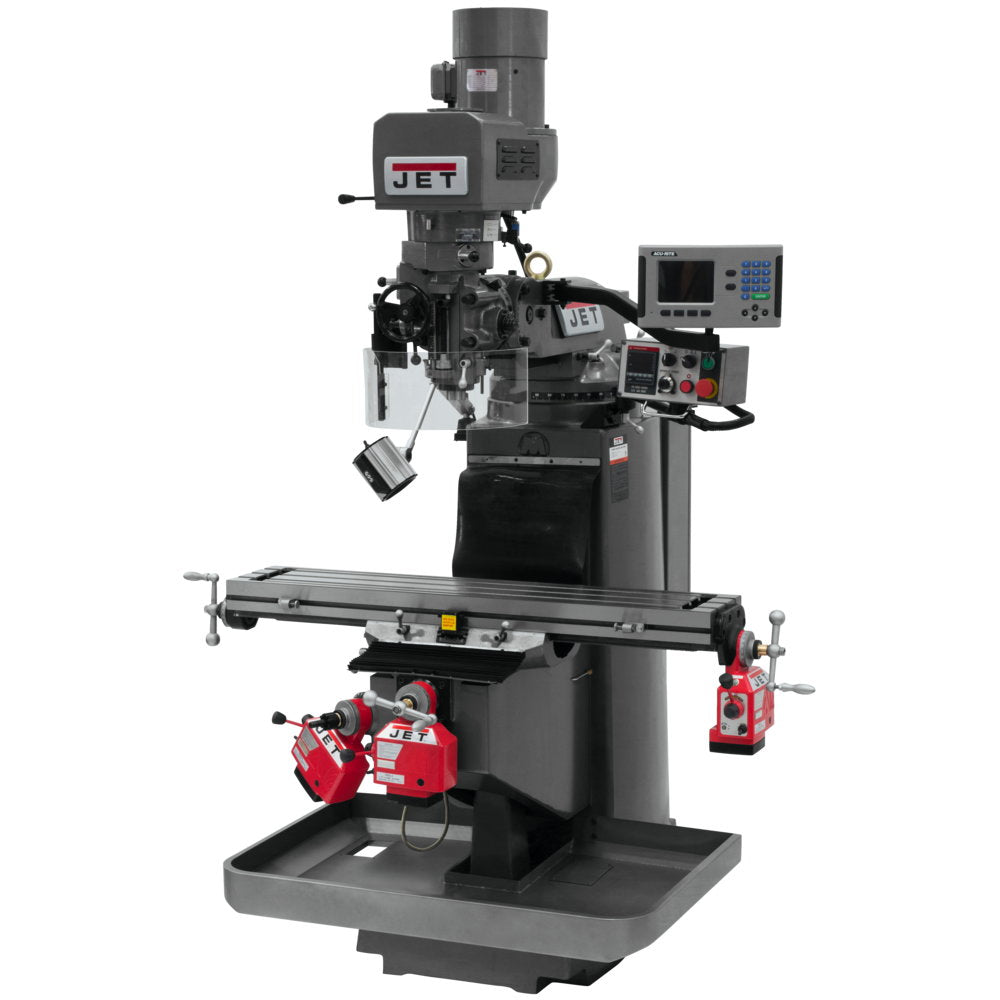

Jet 690529 Features
- New! JET designed Certified Meehanite® casting with enhanced ribbing ensures rigidity and tolerance retention
- Swing away control box houses an e-stop and puts all controls at the operators fingertips
- The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
- Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
- For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
- The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
- CSA/CUS Certified
- Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
- Spindle head is internally cooled extending bearing, belt and motor life
- Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
Jet 690529 Specifications
| Spindle Travel (In.) | 5 |
| Table Cross Travel (In.) | 12-5/8 |
| T-Slot Centers (In.) | 2-1/2 |
| Min. Distance Spindle to Column (Min.) (In.) | 4-3/4 |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Work Table Weight Capacity (Lbs.) | 720 |
| Quill Diameter (In.) | 3-3/8 |
| Collet Capacity | 1/8 - 7/8 |
| Overall Dimensions (L x W x H) (In.) | 67 x 64 x 86 |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds (RPM) | 60 - 4,500 |
| Head Movement | (Deg.) |
| Number of Axis | 3 (Knee) |
| Motor (HP) | 3HP, 230V, 3Ph |
| Style (Type) | EVS |
| Table Size (L x W) (In.) | 9 x 49 |
| Max. Distance Spindle to Column | 18-1/8 |
| T-Slots Number and Size | (In.) |
| Digital Readout | ACU-RITE 200S |
| Powerfeed | X, Y and Z-Axis |
| Travel of Knee | (In.) |
| Travel of Ram | (In.) |
| Max Distance Spindle to Table | (In.) |
| Table Longitudinal Travel | (In.) |
| Table Longitudinal Travel With Powerfeed | (In.) |
| Saddle Width | (In.) |
| Column Width | (In.) |
| Inverter Type | Delta, B |
| number of axis | 3 (Knee) |
| Spindle Taper (In. x TPI) | R-8 |
