Description

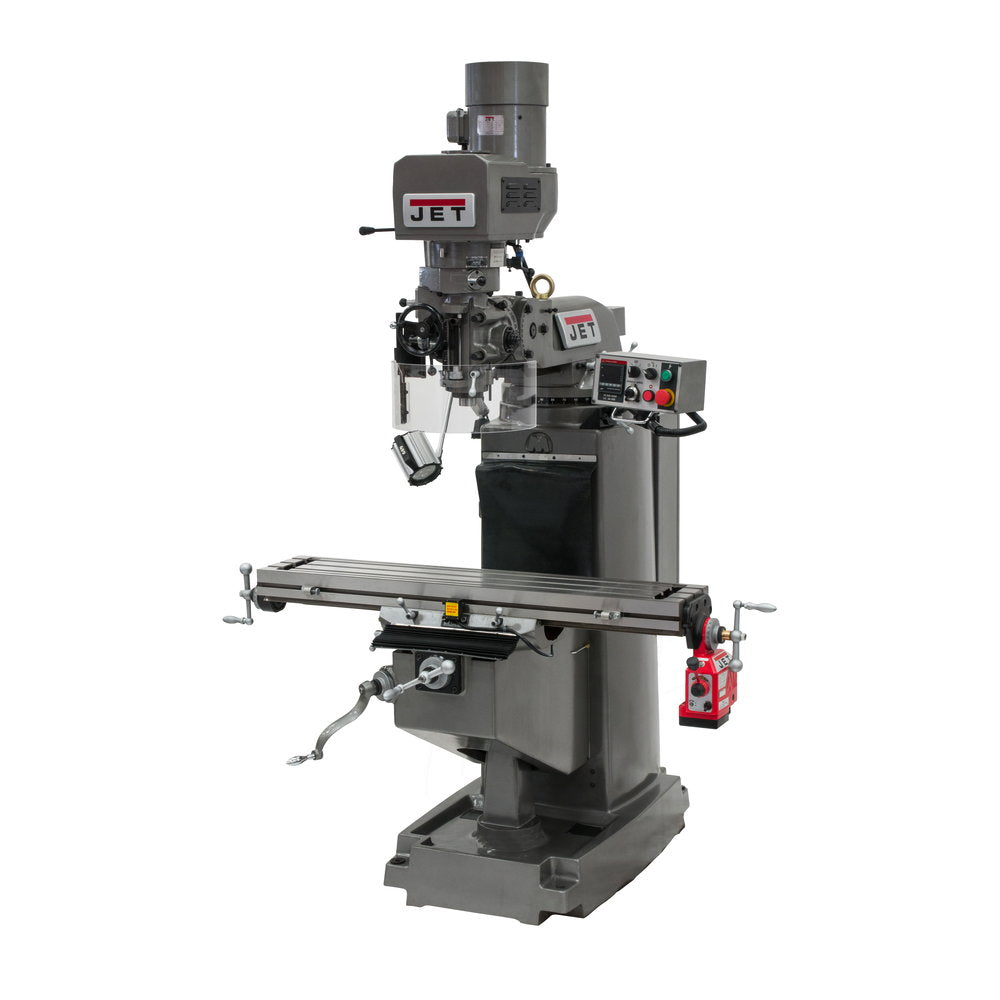

Jet 690676 Description
JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty
Jet 690676 Features
- CNC Electronic Variable Speed Vertical Milling Machine Package JTM-1050EVS
- Features of the ACU-RITE MILLPWR G2 CNC Package
- Precision Ground Ball Screws eliminate backlash for precice lateral movements
- Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
- Powerful DC Servo motor assemblies that include mounting castings and hardware
- Handwheels are included for manual operation
- Features of the ACU-RITE MILLPWR G2 CONTROLLER
- USB + Ethernet compatible
- Simplified navigation that eliminates multiple menu screens
- 12.1" High resolution display (1024 x 768) with 3D graphics
Jet 690676 Specifications
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Travel of Knee (In.) | 16-1/8 |
| Head Movement (Deg.) | 90° R & L, 45° F & B |
| Motor (HP) | 3 HP, 230V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 66 x 63 x 87 |
| Spindle Travel (In.) | 5 |
| Style (Type) | CNC |
| Spindle Taper (In. x TPI) | R-8 |
| Work Table Weight Capacity (Lbs.) | 840 |
| CNC Package | ACU-RITE MILLPWR® G2 |
| Table Longitudinal Travel (In.) | 35-1/3 |
| Table Size (L x W) (In.) | 10 x 50 |
| T-Slots Number and Size (In.) | 3 and 5/8 |
| Table Cross Travel (In.) | 14-3/4 |
| Number of Spindle Speeds | Variable |
| T-Slot Centers (In.) | 2-1/2 |
| Range of Spindle Speeds (RPM) | 60 - 4,500 |
| Travel of Ram (In.) | 15-7/8 |
| Distance Spindle to Column (Max.) (In.) | 26-3/4 |
| Distance Spindle to Column (Min.) (In.) | 4-3/4 |
| Quill Diameter (In.) | 3-3/8 |
| Number of Axis | 3 |
| Collet Capacity | 1/8 - 7/8 |
| Max Distance Spindle to Table (In.) | 20-3/4 |
| Column Width (In.) | 20 |
| Saddle Width (In.) | 11-1/2 |
| Inverter Type | Delta, B |
| Table Longitudinal Travel With Powerfeed (In.) | 29-7/8 |
