Description
FEATURES:
• Riving knife maintains close blade proximity to reduce chance of kickback
• 80” of solid cast iron provides a massive work surface
• Poly V-Belt increases efficiency and reduces slipping and vibration
• Collection shroud around the blade and integrated hose improve dust collection
• Integrated arbor lock is accessed from table top for rapid blade change
• External tool storage for the fence and miter gauge
• 40-1/2” fence provides greater stability and better support when ripping
• Dado insert included
• Maximum rip left of the blade is 14"
• Removal of blade guard, pawls and riving knife takes only seconds
SPECIFICATIONS:
• Motor Voltage (V.): 230
• Maximum Depth of Cut at 45 Degrees (In.): 2-7/8
• Motor Power (HP): 5
• Maximum Width of Dado (In.): 13/16
• Table Size (L x W) (In.): 31-1/2 x 24
• Table Size with Extension (L x W) (In.): 31-1/2 x 80
• Motor Amps: 20
• Motor Phase (PH): 1
• Arbor Speed (RPM): 4300
• Maximum Rip Left of Blade (In.): 14
• Maximum Depth of Cut (In.): 4
• Miter Gauge Type: T-Slot with Stops
• Table Type: Cast Iron
• Arbor Diameter (In.): 1
• Dust Collection Minimum CFM Required (CFM): 350
• Maximum Rip Right of Blade (In.): 50
• Prewired Voltage (V.): 230
• Maximum Diameter of Dado (In.): 8
• Blade Diameter (In.): 12

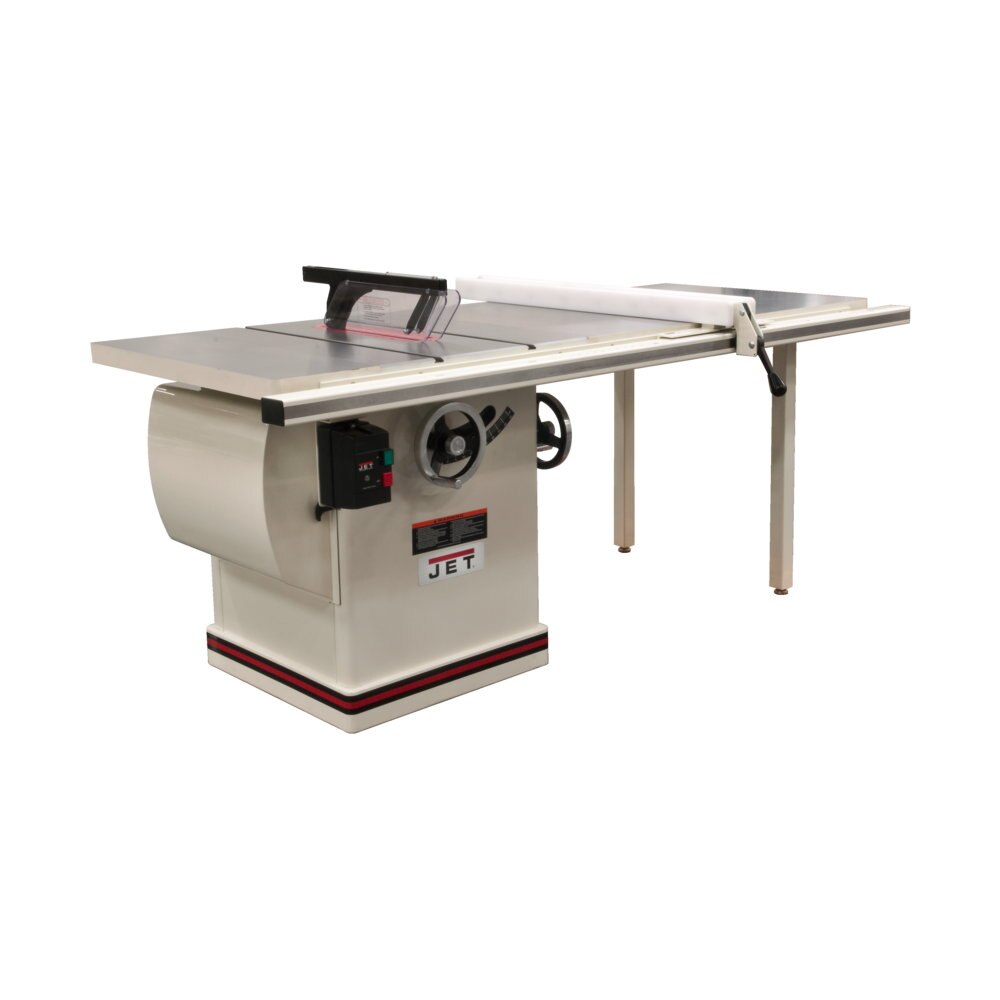

With a riving knife and 80” of solid cast iron work surface, this saw will see you through all your projects. The weight of this machine ensures stability for smooth cutting operation. The JTAS-12-DX also features a maximum rip of 14” left of the blade, giving you more capacity. Dust collection is improved thanks to a collection shroud around the blade and an integrated hose. All of this is backed by JET’s industry-leading 5-year warranty and knowledgeable customer service professionals.
• Riving knife maintains close blade proximity to reduce chance of kickback
• 80” of solid cast iron provides a massive work surface
• Poly V-Belt increases efficiency and reduces slipping and vibration
• Collection shroud around the blade and integrated hose improve dust collection
• Integrated arbor lock is accessed from table top for rapid blade change
• External tool storage for the fence and miter gauge
• 40-1/2” fence provides greater stability and better support when ripping
• Dado insert included
• Maximum rip left of the blade is 14"
• Removal of blade guard, pawls and riving knife takes only seconds
SPECIFICATIONS:
• Motor Voltage (V.): 230
• Maximum Depth of Cut at 45 Degrees (In.): 2-7/8
• Motor Power (HP): 5
• Maximum Width of Dado (In.): 13/16
• Table Size (L x W) (In.): 31-1/2 x 24
• Table Size with Extension (L x W) (In.): 31-1/2 x 80
• Motor Amps: 20
• Motor Phase (PH): 1
• Arbor Speed (RPM): 4300
• Maximum Rip Left of Blade (In.): 14
• Maximum Depth of Cut (In.): 4
• Miter Gauge Type: T-Slot with Stops
• Table Type: Cast Iron
• Arbor Diameter (In.): 1
• Dust Collection Minimum CFM Required (CFM): 350
• Maximum Rip Right of Blade (In.): 50
• Prewired Voltage (V.): 230
• Maximum Diameter of Dado (In.): 8
• Blade Diameter (In.): 12
With a riving knife and 80” of solid cast iron work surface, this saw will see you through all your projects. The weight of this machine ensures stability for smooth cutting operation. The JTAS-12-DX also features a maximum rip of 14” left of the blade, giving you more capacity. Dust collection is improved thanks to a collection shroud around the blade and an integrated hose. All of this is backed by JET’s industry-leading 5-year warranty and knowledgeable customer service professionals.
